تایبەتمەندییەکان

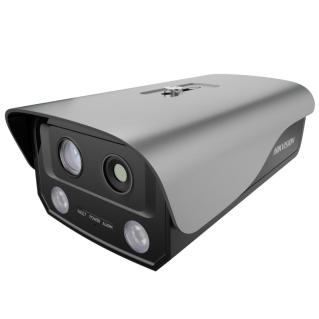

- New fusion smart camera, which can sense the temperature for alarm and can be rechecked via video.
- 400W Fixed Focus Intelligent Camera
- Equip with local alarm indicators
- Support flame detection, coverage: 30 meters (burning object: n-heptane, 0.1㎡ fire plate)
- Support high-temperature and temperature-rise exception detection
- Supports local alarm indicator light, high-decibel alarm through an internal speaker, and remote muting.
- 1 internal speaker, 1 internal microphone, supports bidirectional voice intercom
- OSD alarm event overlay support
- Support access to Hik-Connect
- Supports white fill light
- Support PoE power supply
- Supports 2 alarm input/output channels and 1 audio input/output channel.
- IP66 dust and water resistant
تایبەتمەندییە تەکنیکییەکان
| Max. Image Size | 2560 * 1440 |
|---|---|
| Sensor Type | 1/3" Progressive Scan CMOS |
| Main Stream | 50Hz：25 fps (2560 × 1440，1920 × 1080, 1280 × 720)60Hz：30 fps (2560 × 1440，1920 × 1080, 1280 × 720) |
| Max. Resolution | Max. effective resolution: 256 × 192; Encoding resolution: 1280 × 720 |
| Sub Stream | 50Hz：25 fps (704 × 576，640 × 480, 352 × 288) 60Hz：30 fps (704 × 480，640 × 480, 352 × 240) |
| Min. Illumination | Color : 0.01 Lux @（F1.6，AGC ON） |
| Lens | Horizontal: 78.96°, Vertical: 43.17°, Diagonal: 93.31° |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC and white balance can be adjusted through the client or browser. |
| WDR | WDR |
| Shutter | 1/25 ~ 1/100,000 s |
| Image Enhancement | BLC, 3D DNR |
| Main Stream Video Compression Standard | H.265;H.264 |
| Sub Stream Compression Standard | H.265;H.264 |
| Video Bitrate | 256Kbps ~ 8192Kbps |
| Intelligent Alarm | Intrusion detection, line crossing detection, smoke and flame detection |
| Protocol | TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IPv4, UDP |
| Interface Protocol | ONVIF(PROFILE S, PROFILE G), ISAPI，EZVIZ |
| General | Anti flicker, heartbeat, image, password protection, video occlusion |
| Storage | Micro SD/SDHC/SDXC card (256 G) disconnection local storage |
| Exception Detection | Motion Detection, video tampering alarm, network cable disconnection, IP address conflict, invalid access, full memory, memory error |
| WEB Configuration | Support web preview, configuration and parameter import/export |
| Power Consumption | ＜ 10 W |
| IR Range | 10 m |
| Accessory Type | Wall mounted support, pendent support, universal joint |
| Image Sensor | Vanadium Oxide (VOx) Microbolometer |
| Pixel Size | 17 μm |
| Max. Resolution | 120x90 |
| Response Waveband | 8~14 μm |
| Focal Length of Thermal Imaging Lens | 2.3mm |
| Thermal Imaging Field of View | 90°×68° |
| Palette Mode | Support 15 modes including white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, etc. |
| Fire and Smoke Detection | Yes |
| Temperature Exception Detection | Yes |
| Temperature Measurement Range | -20 °C ~ 400 °C |
| Thermography Precision | Max (± 8 °C, ± 8 %) , within the range of 0.4 ~ 2.5 m from the device |
| Noise Equivalent Temperature Difference (NETD) | ≤50 mK(@25 °C,F1.0) |
| Temperature Sensing Mode | Support non-contact temperature sensing |
| High Temperature Alarm | Yes |
| Alarm Indicator Light | Red: Alarm Green: NormalYellow: Fault |
| Alarm Interface | 2 way alarm input (Alarm in), 2 way alarm output (Alarm out, support DC 30 V/2 or AC 125 V/0.5 A) |
| Ethernet Interface | RJ45 10 M/100 M adaptive Ethernet port × 1 |
| Audio Interface | 1 way audio input (Line in), 1 way audio output (Line out), 1 way built-in microphone, 1 way built-in speaker |
| Flame Detection | Yes |
| Smoke Detection | Yes |
| Ingress Protection | IP 66 |
| Mounting Height | Indoor: higher than 2.5 mOutdoor: higher than 3.5 m |
| Power Interface Type | 3pin industrial terminal, spacing: 3.81 |
| Power | DC 9V~30V, 24W MAX; PoE: 802.3at; Class III (The power adapter is not included; you will need to configure it yourself) |
| Working Temperature | -20~60°C |
| Working Humidity | ＜95% RH |
| Product Implementation Standard | Q/HKD 054-2024 |
| Weight | 1.35 kg (without packaging), 1.7 kg (with packaging) |
| Dimension (L × W × H) | 212.5 × 130.0 × 84.8 mm |
